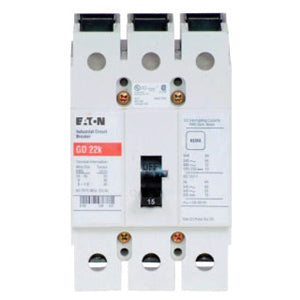

Cutler-Hammer GD3040 Circuit Breaker
Regular price
$1,171.77
Couldn't load pickup availability
Eaton’s Series C Moulded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards.
Specifications:
Type: Molded Case, Thermal Magnetic
Frame Type: G
Voltage Rating: 480 Volt AC at 50/60 Hertz, 250 Volt DC
Maximum AC Voltage Rating: 480 Volt
Maximum DC Voltage Rating: 250 Volt
Current Rating: 40 Amp at 40 Deg C
Number of Poles: 3
Interrupting Rating: 22 Kiloamp at 480 Volt AC, 10 Kiloamp at 250 Volt DC
Terminal Type: Screw Type Clamp Line and Load
Size: 3 Inch Width
Approval: UL 489, CSA
