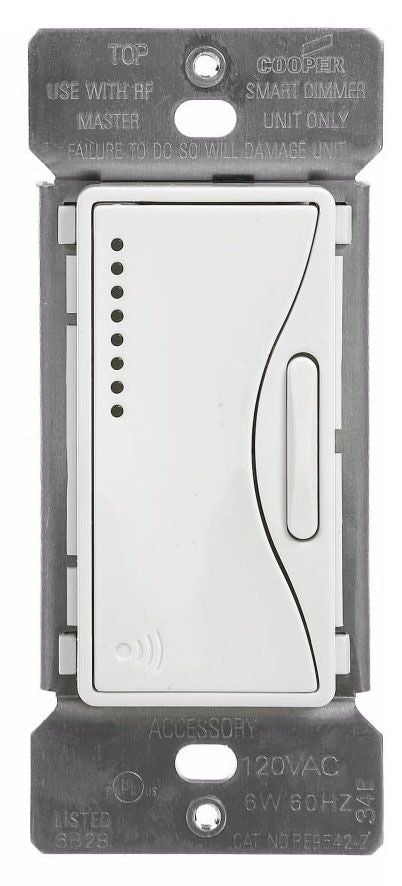

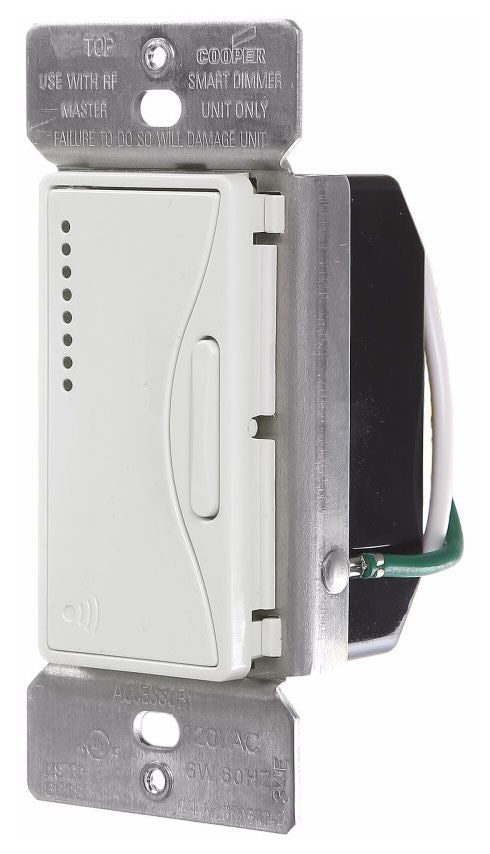

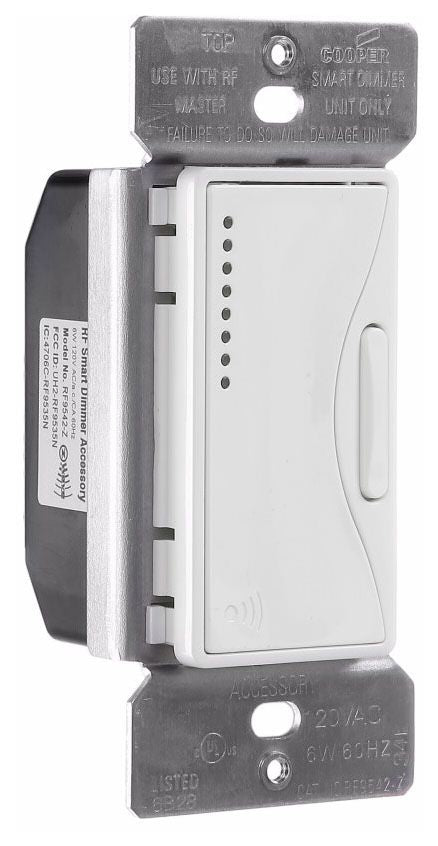

Arrow Hart RF9542-ZAW RF Smart Dimmer

Turn Lights on and Off and Adjust the Light Intensity to Create any Mood or Environment with a Single Touch on One of the Aspire Z-Wave Controllers; Versions with no Neutral are Ideal for Remodeling/Retrofit Applications; Electro-Mechanical Push Pad for On/Off Operation with Separate Dim/Bright Bar; LED Light-Level Display for Presetting Illumination Levels and Master/Accessory Units for Multi-Location Control; Amber LED at Bottom of LED Display Indicates On/Off Load Status; Seven Step Blue Led Display Indicates Selected Light Level and Reduces Brightness when Off (Location Feature); Z-Wave Accessory RF9542 Works with no Neutral Z-Wave Dimmers to Provide Traditional Multi-Location Control for up to 3 Additional Locations Using Traditional 3-Way Traveler Wires; All Z-Wave Master Dimmers can be Used for Multi-Location Control with the RF9542-Z and Rf9575; Can be Associated with up to 5 Other Devices; All-On/All-Off Capability; Panic Mode Capability; Patented Indicator System Alerts if Dimmer is Not Set up in the Network; Title 24 Compliant

Specifications:

Type: Wall Dimmer
Operator Type: Electro Mechanical On/Off Push Pad
Operation Type: 3-Way
Voltage Rating: 120 VAC at 60 Hz
Finish: Alpine White
Size: 1.8 Inch W x 1.36 Inch D x 4.2 Inch H
Approval: UL (Canada and US), FCC, NOM 426
