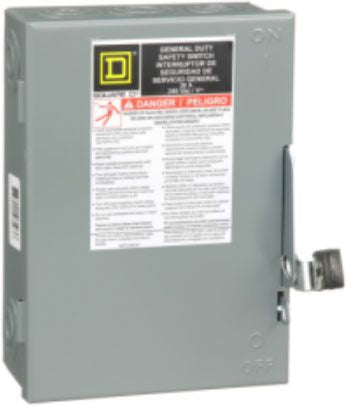

General Duty Safety Switches are Designed for Residential and Commercial Applications where Durability and Economy are Prime Considerations; Typical Loads are Lighting, Air Conditioning and Appliances; They are Suitable for Use as Service Equipment when Equipped with a Factory or Field-Installed Neutral Assembly or a Field-Installed Service Grounding Kit; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product

Specifications:

Type: General Duty
AC Voltage Rating: 240 V
Current Rating: 30 Ampere
Power Rating: 1-1/2 HP at 240 VAC 1-Phase (Standard), 3 HP at 240 VAC 3-Phase (Standard), 3 HP at 240 VAC 1-Phase (Maximum), 7-1/2 HP at 240 VAC 3-Phase (Maximum)
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Cartridge, Class R
Neutral Type: Solid
Enclosure: NEMA 1
Size: 7.25 Inch W x 3.63 Inch D x 9.25 Inch H
Enclosure Material: Phosphatized Steel
Finish: Gray Baked Enamel
Approval: UL
