Orbit Industries BARB-CS Stud Wall Slider Bracket

  • Sale
  • Regular price $2.08
Shipping calculated at checkout.

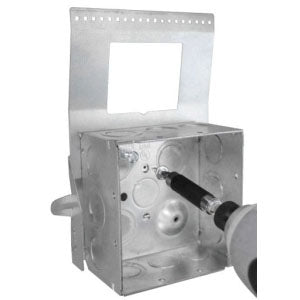

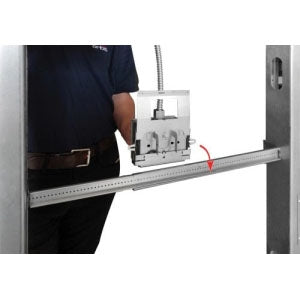

Quickly Attaches to any 4 Inch or 4-11/16 Inch Square Box with Just One Tek Screw; Easily Drops onto BHA-16 and BHA-24 Adjustable Bar Hanger Which Accommodates 1-1/2 Inch, 2-1/8 Inch and 2-1/2 Inch Deep Box and can Be Installed Between Ceiling Joists or Wall Stud; Once on a BHA the Barb and Box Assembly can Be Repositioned Along the Hanger; A Full Box Assembly can be Prefabricated onto the Bar Hanger by Bending the Locking Tab; Multiple Box Assemblies can be Easily Added before and after the Bar Hanger is Installed; Allows for the Installation of up to 2 Boxes Between 16 Inch Studs and 4 Between 24 Inch Stud; Comes Complete with Cable Support Pin Hole; RoHS Compliant; Made in USA

Specifications:

Item: Slider Bracket
Type: Drop-On-Bar
Approval: UL


Documents:
