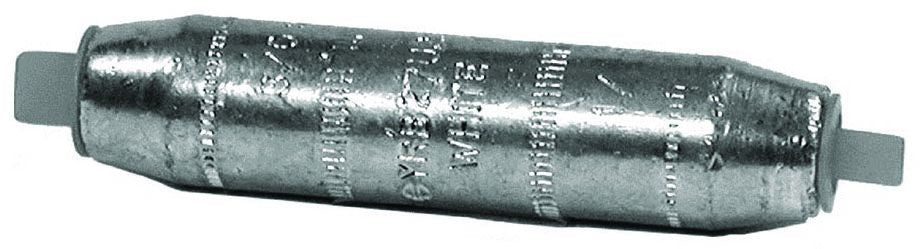

Burndy YRB28U26 Compression Reducing Splice
Regular price
$86.34
Couldn't load pickup availability
HYREDUCER Type YRB reducer butt splices are designed to splice two different conductor sizes and is UL Listed for aluminum to copper and aluminum to aluminum applications. The outside diameter is held constant to minimize installation dies and is factory prefilled with PENETROX oxide inhibitor.
Specifications:
Type: Reducing Splice
Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper

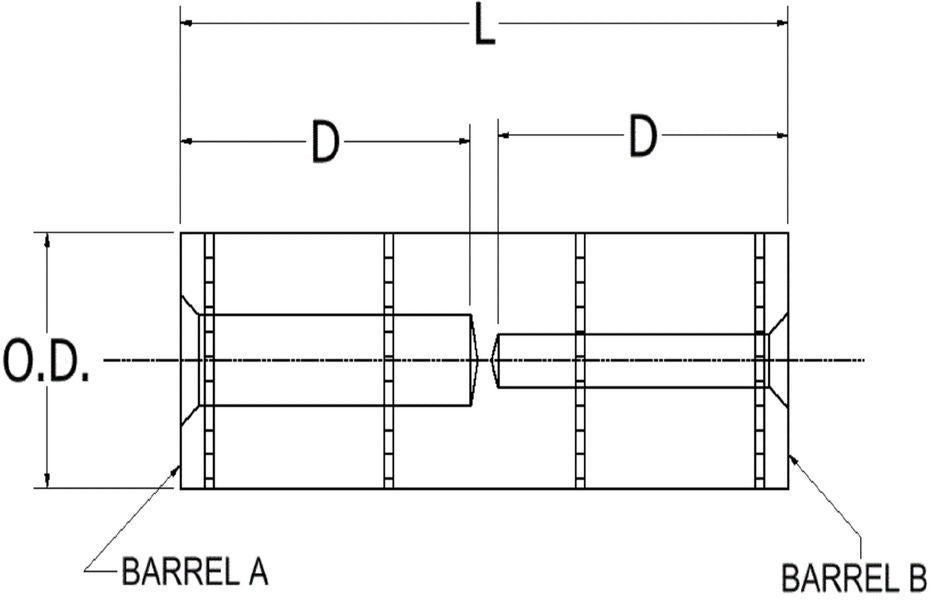

Side A Conductor Size: 4/0 AWG Stranded
Side B Conductor Size: 2/0 AWG Stranded
Outer Diameter: 0.85 Inch
Length: 3.31 Inch
Material: Electro Tin Plated Aluminum
Color: White
Approval: UL
