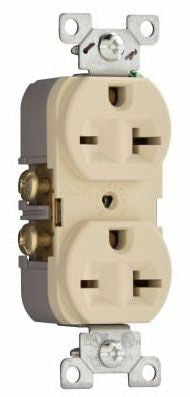

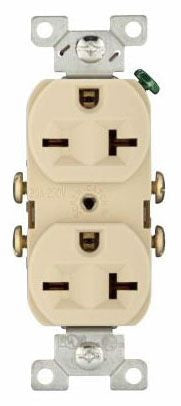

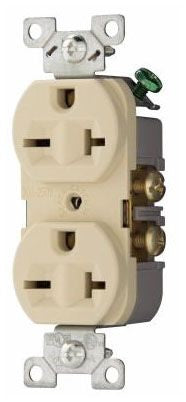

Arrow Hart 815V-BOX Straight Blade Receptacle

Galvanized Steel, Wrap-Around Yoke Mounting Strap for Superior Assembly Security; Extra Length/Width Helps Reach Large Panel Cutouts for Code Compliance; Automatic Grounding System Eliminates Need for Bonding Jumper in Grounded Metal Enclosure, Provides Redundant Measure of Ground Continuity Where Jumper Used; Screw-Catch Feature on Duplex Devices Speeds Mounting of Wallplates; RoHS Compliant

Specifications:

Type: Duplex
Constructional Feature: Chemical Resistant, Impact Resistant
Configuration: 6-20R
Voltage Rating: 250 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Polycarbonate Face/Base
Color: Ivory
Wiring: Side
Grade: Commercial
Approval: UL (Canada and US), UL 498, CSA C22.2, NOM 426
