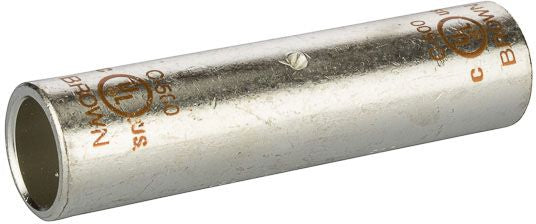

NSi Industries C-500 Compression Cable Splice
Regular price
$0.31
Couldn't load pickup availability
Produced from High Conductivity Copper Tubing; Serrations Indicate Proper Crimp Location; Tin Plated to Provide Corrosion Resistance; Marked with Die Index and Color Coded; Suitable for Use at Voltages up to 35 Kilovolt Provided Connector is Properly Installed to Cable Manufacturer Voltage Stress Relief Instructions; 5 Kilovolt is the Maximum Voltage in All Bare Splices
Specifications:
Voltage Rating: 5 Kilovolt
Conductor Size: 500 KCMIL
Color Code: Brown
Barrel Type: Long
Length: 4.252 Inch
Inner Diameter: 0.835 Inch
Outer Diameter: 1.063 Inch
Body Material: Tin Plated Copper
Approval: UL (Canada and US)
