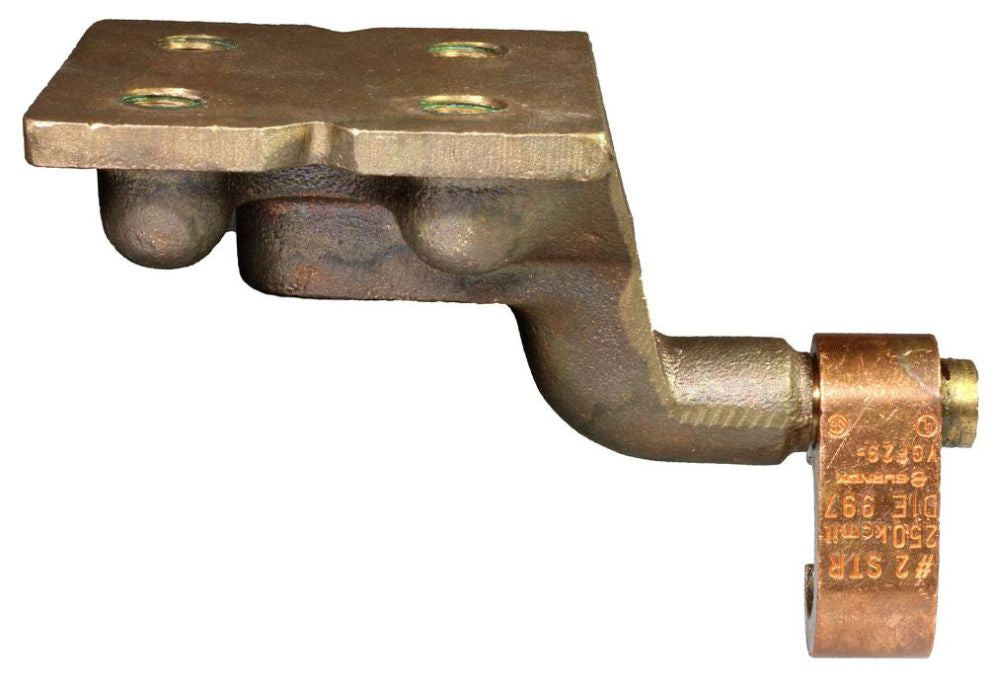

Burndy YGF29-4N Compression Grounding Plate
Regular price
$200.80
Couldn't load pickup availability
The irreversible compression ground plate is designed to withstand the rigors of concrete construction. The ground plates are made of high strength, high-conductivity cast copper alloy body with a pure wrought copper compression element. In addition to the tapped NEMA size holes and spacing on the face, the plate comes with a tapped hole on the underside for ease of positioning prior to pouring the concrete.
Specifications:
Type: Grounding Plate
Length: 5.78 Inch
Width: 3.25 Inch
Thickness: 1.31 Inch
Material: Copper Alloy
Process: Cast
Conductor Size: 2 AWG to 250 KCMIL
Number of Holes: 4
Approval: UL 467, CSA
