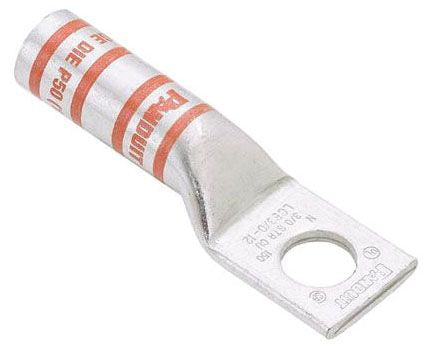

Long Barrel Maximizes Number of Crimp and Provides Premium Wire Pull-Out Strength and Electrical Performance; Color-Coded Barrels Marked with Panduit and Specified Competitor Die Index Numbers for Proper Crimp Die Selection; Enclosed Barrel Prevents Corrosive Material from Entering Barrel When Used in Harsh Environments; Tin-Plated to Inhibit Corrosion

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 8 AWG
Barrel Type: Long, Straight
Barrel Length: 0.7 Inch
Pad Size: 0.41 Inch W x 0.08 Inch Thk
Number of Pad Holes: 1
Stud Size: #10
Color: Red
Die Index: P21, 49 (Burndy), 21 (T and B)
Material: Electro Tin Plated High Conductivity Copper
Overall Length: 1.44 Inch
Approval: UL 486A/486B, CSA C22.2
