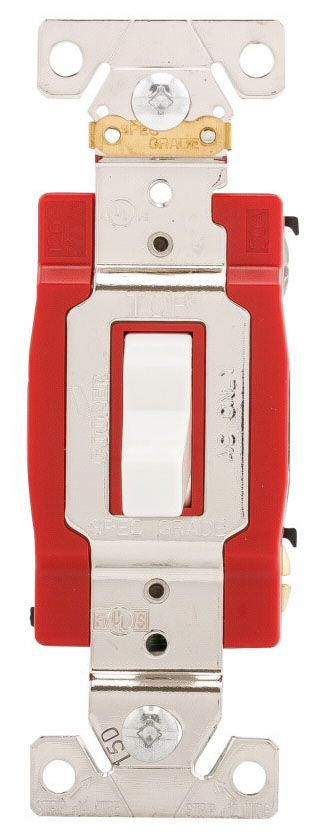

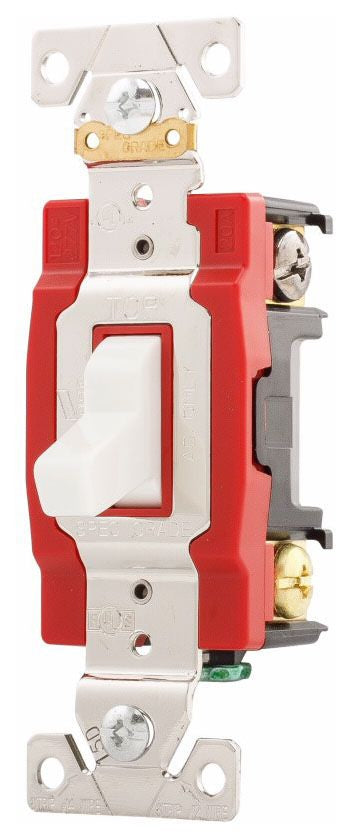

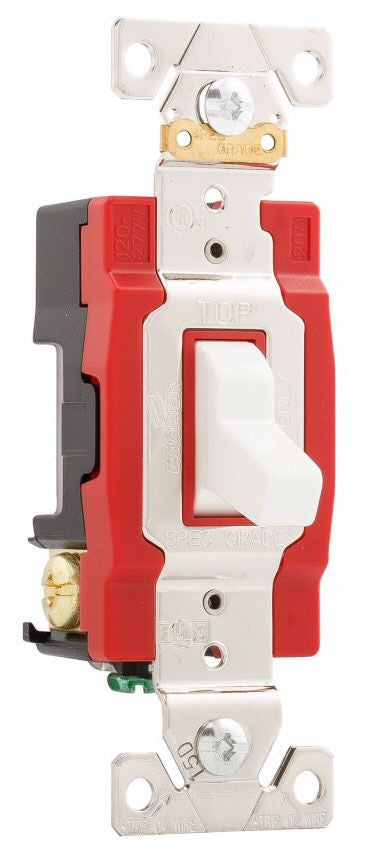

Arrow Hart AH1223W AC Toggle Switch

Automatic Grounding Eliminates Need for Bonding Jumper in Metal Enclosures; Robust Nylon Toggle for Heavy Usage Areas; Heavy Gauge 0.050 Inch Plated Steel Mounting Strap Withstands Corrosion; Tri-Combo Head Terminal and Mounting Screws, Plus Easy-Access Grounding Terminal; Dual Back-Wire Holes for Maximum Feed-Thru Wiring Flexibility, Accepts up to #10 Awg Solid or Stranded Wire; One-Piece Brass Contact Arm and Large Silver Alloy Contact Assures Low-Resistance Switching; Patent-Pending Spring Cup Toggle Design for Consistent Positive Activation; RoHS Compliant

Specifications:

Type: Toggle, Auto-Grounding
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1/2 HP at 120 Volt AC, 2 HP at 240 Volt AC
Operation Type: 3-Way
Material: Rugged Thermoplastic (Top/Bottom)
Color: White
Wiring: Back/Side
Size: 1.3 Inch Width x 1.03 Inch Depth x 4.19 Inch Height
Application: Industrial
Approval: UL (Canada and US), UL 20, CSA C22.2, NOM 426
