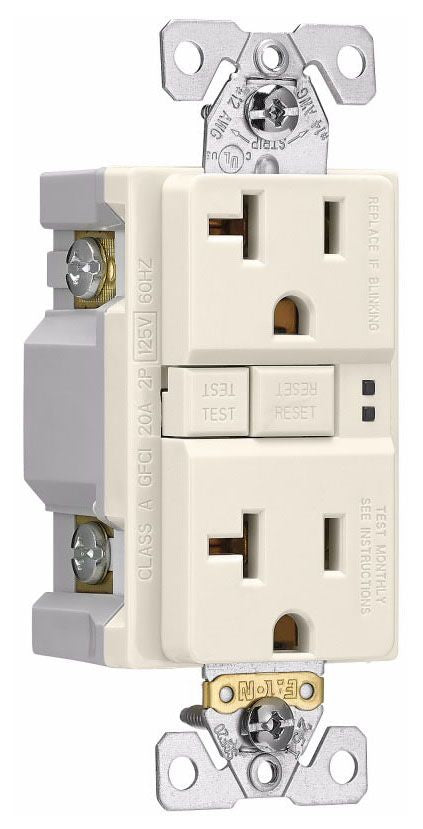

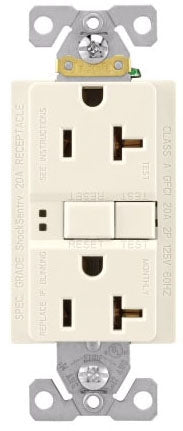

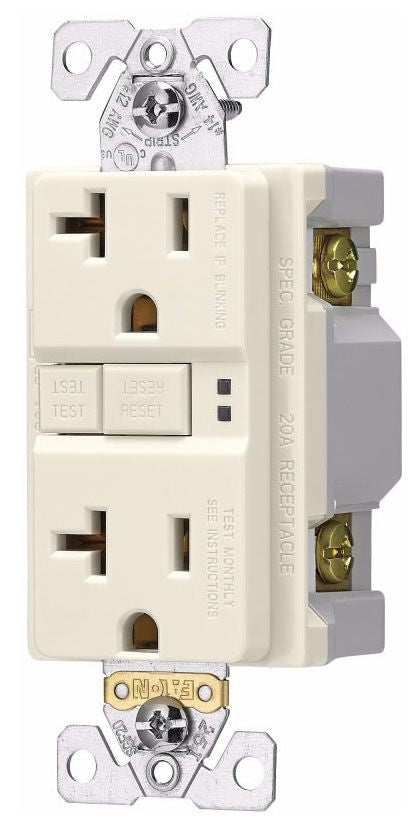

Eaton Wiring Devices SGF20LA GFCI Receptacle

Automatic Grounding System Eliminates Need for Bonding Jumper in Grounded Metal Enclosure, Provides Redundant Measure of Ground Continuity where Jumper is Used; Ground Termination with Back Wire Clamp Provides Secure Wiring and Reduces Installation Time; Line Side Terminals are Backed Out and Staked for Fast Installation; Horizontal Test/Reset Button Alignment Provides Larger Unobstructed Area; Test and Reset Buttons are Color Matched to Provide Superior Aesthetics; When Downstream Receptacles are Wired from Load Side a 20 Amp Feed-Through Rating Offers Full Protection; 10 Kiloamp Short Circuit Current Rating per Supplement SA of UL 943

Specifications:

Type: Duplex, Self-Test
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Material: PVC (Body), Brass (Contact)
Color: Light Almond
Wiring: Back, Side
Grade: Specification
Approval: UL (Canada and US), UL 498/943, NOM 426
