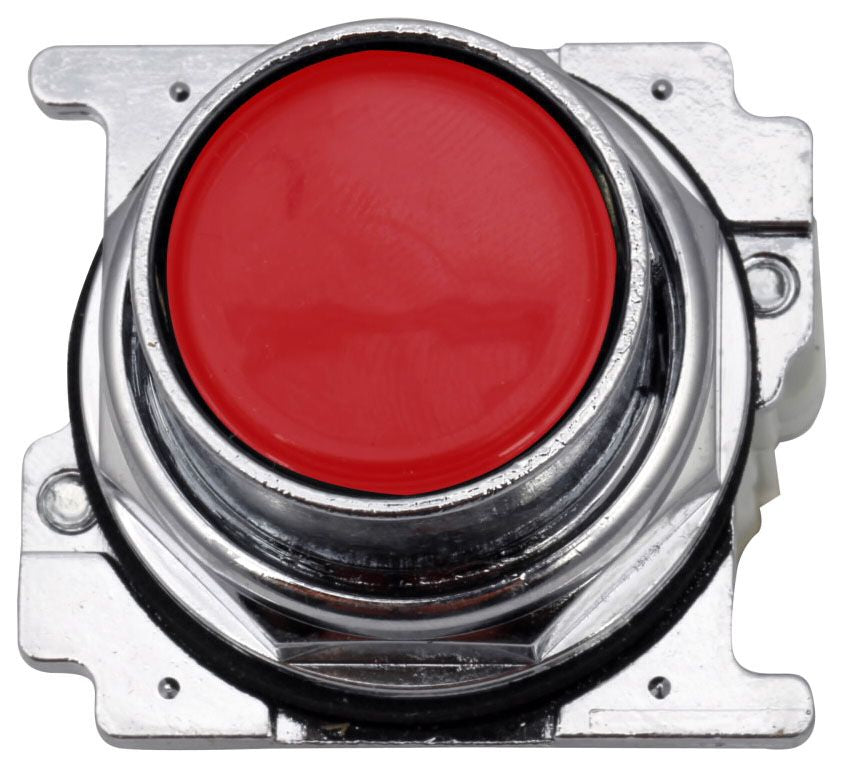

Push forward toward control for harsh environmentsEaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. The versatile 10250T line offers the largest breadth of functionality options in the industry using a single metal operator housing. The portfolio’s heavy-duty, water- and oil-tight 30.5 mm pushbuttons are an excellent choice for applications where reliability and durability are required.

Specifications:

Type: Flush
Size: 30.5 Millimeter
Operation Type: Momentary
Contact Configuration: 1NO
Contact Rating: 600 Volt AC at 50/60 Hertz 10 Amp, 250 Volt DC 5 Amp
Cap/Lens Color: Red
Body Material: Chrome Plated Die-Cast Zinc
Bezel Material: Chrome
Enclosure: NEMA 3/3R/4/4X/12/13, IP65
Approval: UL 508, CSA C22.2, CE
