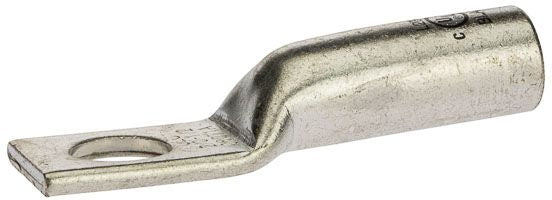

Produced from High Conductivity Copper Tubing; Tin Plated to Provide Corrosion Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 KiloVolt Maximum when Properly Installed and to Cable Manufacturer Instructions; For Applications Greater than 2000 Volt, Consult the Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Conductor Size: 2/0 AWG
Barrel Type: Long
Barrel Length: 1.38 Inch
Pad Size: 1.06 Inch L x 0.82 Inch W x 0.12 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Black
Die Index: 6/13/1945 12:00:00 AM
Material: Tin Plated Copper
Overall Length: 2.67 Inch
Approval: UL 486A/B, 467, UL (Canada and US)
