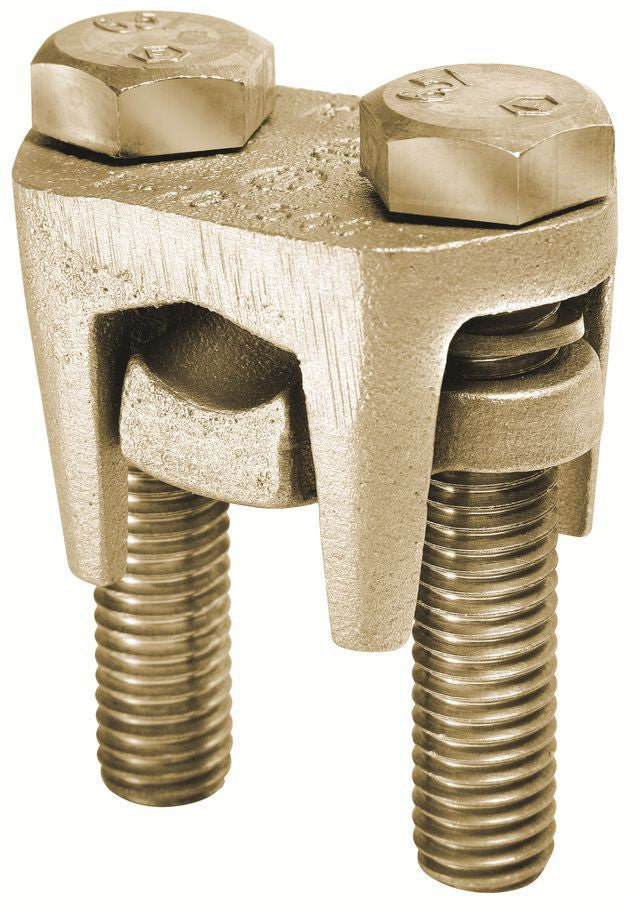

Burndy KVS28 Mechanical Single Cable Tap Connector

Compact, 2-Piece, High Strength, High Copper Alloy Burndy Oklip Recommended for Heavy Duty Connections; Neoprene Rings Hold Durium Silicon Bronze Bolts in Place During Installation; Installed with Ordinary Wrench

Specifications:

Installation: Two Bolt
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 1/0 AWG Stranded (Copper)
Maximum Run Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
Minimum Tap Conductor Size: 10 AWG Stranded (Copper)
Maximum Tap Conductor Size: (7) 6 AWG Stranded (Copperweld), 3/0 AWG Type V (Copperweld), 4/0 AWG Solid (Copperweld), 4/0 AWG Stranded (Copper)
Material: High Strength Copper Alloy Body, Durium Bolt, Neoprene Ring
Approval: UL, CSA
