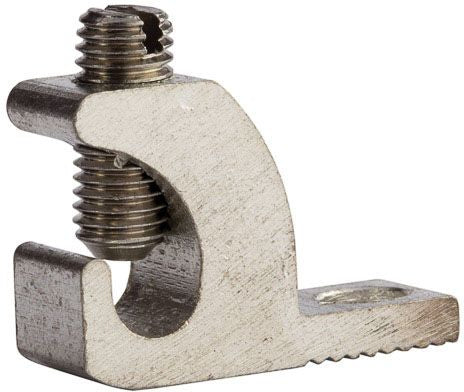

Lay-In Connectors Offer the Ultimate in Flexibility; Excellent for Grounding and Continuous Loop Applications; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Lay-In
Number of Conductors: 1
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 4 AWG
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: Slotted
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 0.38 Inch W x 0.15 Inch Thk
Stud Size: 0.218 Inch
Overall Length: 1.07 Inch
Approval: UL (Canada and US)
