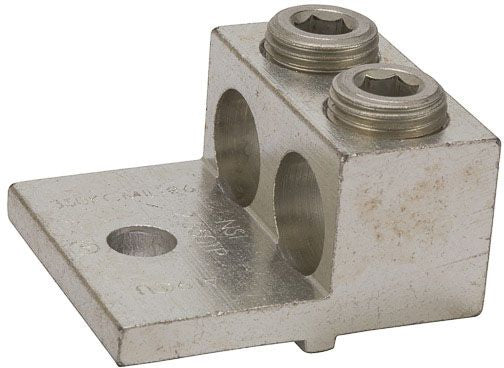

NSi Industries 2-350TP Mechanical Connector Lug
Regular price
$0.25
Couldn't load pickup availability
Large Size Set Screw Connectors with Wire Holes Stacked on Top of Each Other to Minimize the Width of the Connector; Electro Tin Plated for Low Contact Resistance; For Use with Copper or Aluminum Conductors; Turn Prevent Node Located on Bottom Prevents Rotation of Lug
Specifications:
Type: Dual Rated, Turn Prevent
Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 MCM
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 5/8 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 1.125 Inch Length x 1.92 Inch Width x 0.25 Inch Thickness
Stud Size: 0.406 Inch
Overall Length: 2.25 Inch
Approval: UL (Canada and US), UL 486A/B
