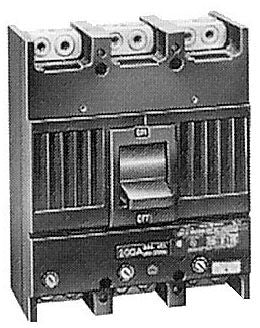

The J600 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 600 Amps and 600 Volts AC; Type TJJ Devices Ship Fully Assembled While Types TJK/THJK Ship Unassembled Unless Specified on the Order

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: J
Voltage Rating: 600 V
Maximum AC Voltage Rating: 600 V
Maximum DC Voltage Rating: 500 V
Current Rating: 400 Ampere
Number of Poles: 3
Interrupting Rating: 65 Kiloampere at 240 VAC, 35 Kiloampere at 480 VAC, 25 Kiloampere at 600 VAC, 40 Kiloampere at 250 VDC, 20 Kiloampere at 500 VDC
Terminal Type: Copper/Aluminum Line and Load Lug
Size: 8-1/4 Inch W x 3-13/16 Inch D x 10-1/8 Inch H
Approval: CSA
