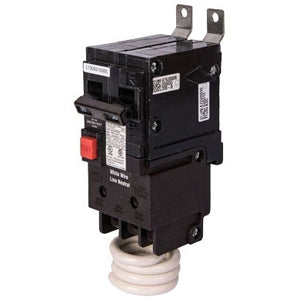

Provides Class a (5 Milliamp) Ground Fault Protection; Intended for Personnel Protection; De-Energizes the Circuit for All Ungrounded Conductors of the Circuit

Specifications:

Type: Thermal Magnetic, Equipment Protector
Number of Poles: 2
Voltage Rating: 120/240 VAC
Current Rating: 20 Ampere
Interrupting Rating: 22 Kiloamp
Trip Sensitivity: 30 Milliamp
Terminal Type: Load Lug
Wire Size: 12 to 8 AWG (Aluminum), 14 to 10 AWG (Copper)
Mounting: Bolt-On
Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
Size: 7 Inch Width x 13 Inch Depth x 8 Inch Height
Approval: UL 489
