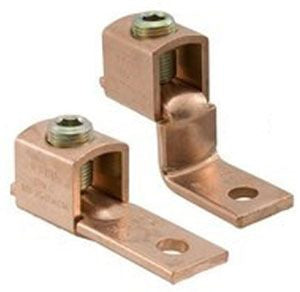

Ilsco SLU-125 Mechanical Lug

Provides Maximum Conductivity and Strength; Compact Design; Saves Space and Reduces Installation Time; Permits Inventories to be Kept to a Minimum; Re-Usable; Provides Efficient Use and Flexibility in the Field; Wires are Wedged Between Arched Pressure Bar and Collar Establishing Positive Contact and Firm Permanent Grip; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant

Specifications:

Type: V Bottom Collar
Number of Conductors: 1
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 1/0 AWG
Conductor Material: Copper
Pad Type: Offset
Screw Type: Slot
Material: Electrolytic Copper
Number of Pad Holes: 1
Pad Size: 13/16 Inch L x 5/8 Inch W
Stud Size: 1/4 Inch
Overall Length: 1-31/32 Inch
Approval: UL 453G, UL 486A/B, CSA
