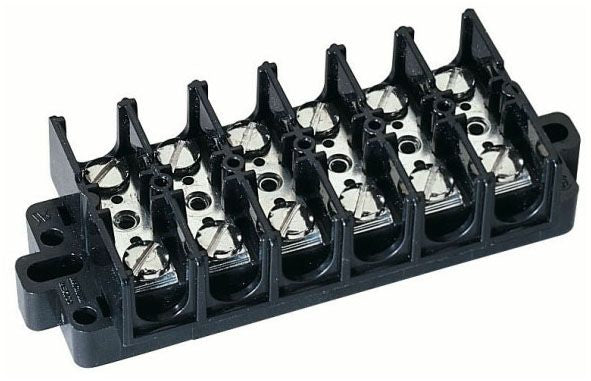

IDEAL Electrical 89-506 Terminal Strip

Out of stock
SKU: 255586
Regular price $37.40
OR

IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.

Specifications:

Type: Center Spacing
Number of Circuits: 6
Voltage Rating: 600 Volt (UL/CSA)
Current Rating: 60 Amp (UL/CSA)
Wire Size: 22 to 6 AWG (Copper)
Terminal Type: #10-32 TPI Philips Slotted Screw
Size: 5 Inch Length x 2 Inch Width x 1.25 Inch Height
Temperature Rating: -40 to 130 Deg C
Housing Material: Rugged Polyester Thermoplastic
Mounting: Surface
Approval: UL, CSA
