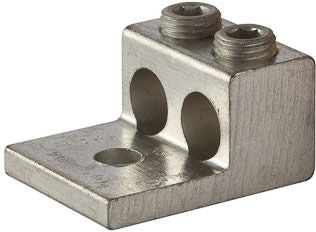

NSi Industries 2-350L2 Mechanical Panelboard Lug

Out of stock
SKU: 255914
Regular price $0.25
OR

Panelboard Style for Multi-Conductor with NEMA Mounting Hole Spacing for Turn Prevent and Secureness; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 5/16 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 2
Pad Size: 3.25 Inch L x 1.92 Inch W x 0.25 Inch Thk
Stud Size: 0.56 Inch
Overall Length: 4.25 Inch
Approval: UL (Canada and US)
