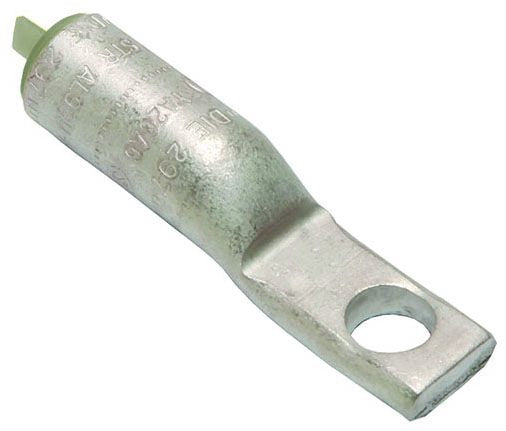

Burndy YA4CA3 Compression Cable Lug
Regular price
$14.94
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 0.88 Inch
Pad Size: 0.8 Inch W x 0.12 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Green
Die Index: 375
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 2.25 Inch
Approval: UL 468A/468B, CSA
