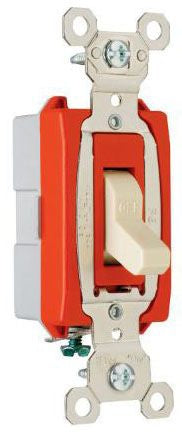

Pass & Seymour PS20AC1I Toggle Switch

Out of stock
SKU: 25666
Regular price $5.84
OR

External Screw Pressure Plate Back and Side Wired Accepts #14 to #10 AWG Copper or Copper Clad Conductors; Heavy Gauge One-Piece Copper Alloy Contact Arm Virtually Eliminates Contact Bounce; Cam Controls Fast Make and Positive Break to Minimize Arcing; Heavy Duty Bumper Pads for Quiet Operation; High Strength Thermoplastic Polycarbonate Toggle; Back Body Made of Glass-Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Oversized Silver Alloy Contacts for Long Life and Better Heat Dissipation; Grounding Terminal is Standard; Shallow Design for Ease of Installation; Strap Nickel-Plated Steel with Integral Ground; Auto Ground Clip Assures Positive Ground

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP and 2 HP
Operation Type: 1-Pole
Material: Glass Reinforced Nylon (Back Body), Thermoplastic (Front Body/Toggle)
Color: Ivory
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Industrial, Extra Heavy Duty, Specification Grade
Approval: UL 498, CSA C22.2
