Convertible; Invertible; Insta-Wire Neutrals and Ground; Copper Busbar; Dual Neutrals on All Configuration; Ground Bars Included

Specifications:

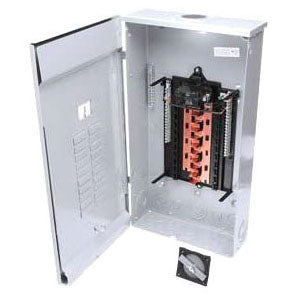

Type: Main Breaker, Convertible
Voltage Rating: 120/240 Volt AC
Current Rating: 100 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 20
Maximum Number of Spaces: (20) 1 Inch
Interrupting Rating: 22 Kiloampere
Neutral Type: Bonded, Groundable
Bus Material: Copper
Feed Location: Bottom
Enclosure Type: NEMA 3R, Outdoor
Cover Type: Flush/Surface, Slide Hinge Door
Enclosure Size Designation: 3R
Size: 14-1/2 Inch Width x 4-1/4 Inch Depth x 27 Inch Height
Approval: UL
