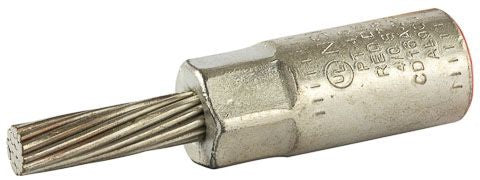

Designed to Facilitate Termination of Aluminum Conductors; Supplied with PVC Insulating Cover; Connector Bores are Coated with Oxide Inhibitor

Specifications:

Type: Bi-Metallic
Voltage Rating: 600 Volt
Conductor Material: Aluminum
Conductor Size: 4/0 AWG Stranded
Material: Tin Plated Copper
Insulation Type: EPDM Insulated
Pin Size: 0.405 Inch Diameter x 1.464 Inch Length
Cover Size: 0.9 Inch Diameter x 2.05 Inch Length
Overall Length: 3.52 Inch
Approval: UL 486A/B, UL (Canada and US)
