Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA VDC while delivering a minimum of 10 seconds of 500% rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 VAC and 300 VDC

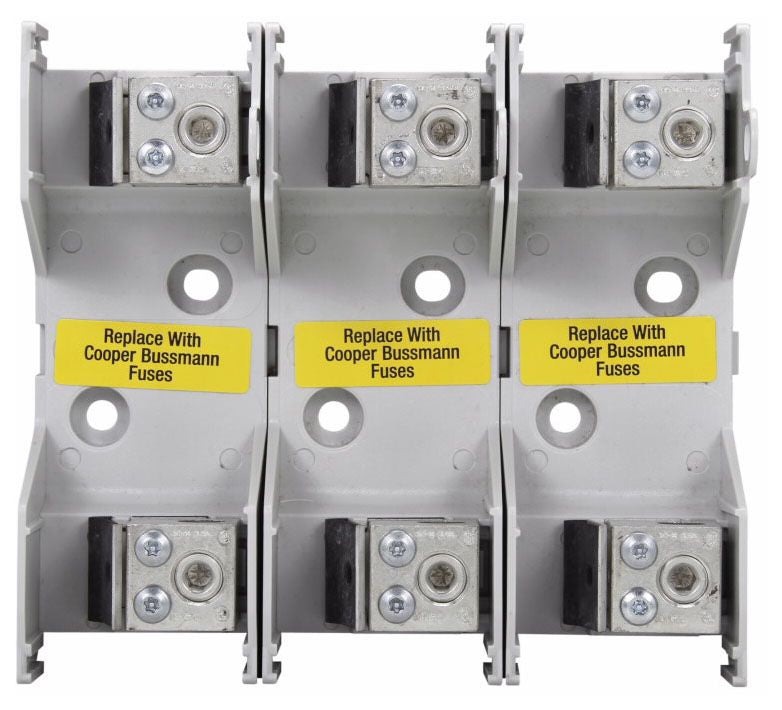

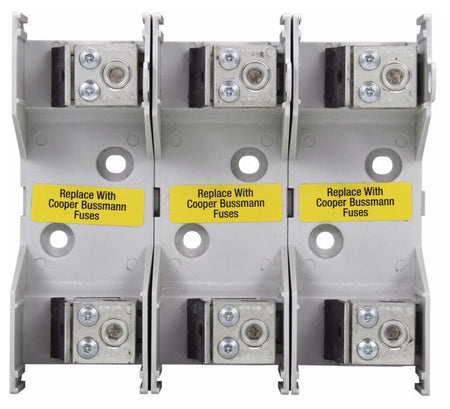

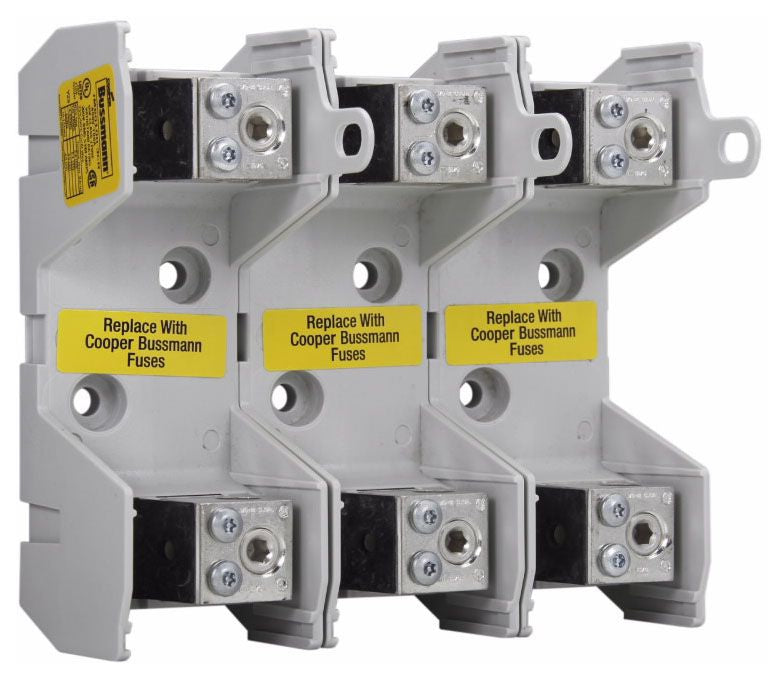

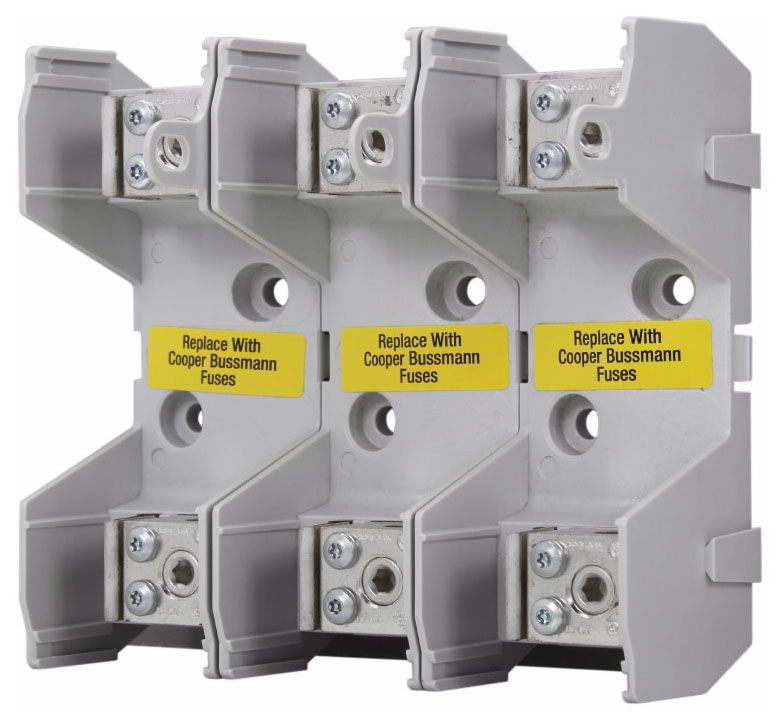

Specifications:

Type: Barrier
Material: Thermoplastic
Number of Poles: 3
Fuse Type: Class J
Fuse Voltage Rating: 600 Volt
Fuse Current Rating: 70 to 100 Amp
Wire Size: 14 to 10 AWG Copper, 12 to 10 AWG Aluminum (Solid/Stranded)
Terminal Type: Box Lug with Slot Screw
Clip Type: Spring Reinforced
Approval: UL, CSA, CE
