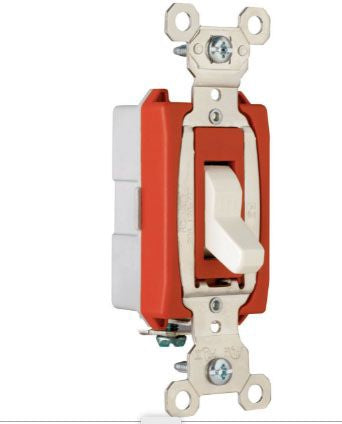

Pass & Seymour PS20AC1W Industrial Toggle Switch

  • Sale
  • Regular price $4.32
  • 1 available
Shipping calculated at checkout.


1-Piece Toggle Molded from Chemical-,Impact-and Heat-Resistant Thermoplastic; Impact- and Chemical-Resistant Cover; Glass-Reinforced, Chemical-Resistant Thermoplastic Back Body for Durability, Strength and Resistance to Harsh Cleaners; 1-Piece Nickel-Plated Brass Strap for Superior Corrosion-Resistance; Auto-Ground Clip Assures Positive Ground; Cam Control and Spring Actuator for Positive ''Makes and Breaks''; Heavy Duty Bumpers for Quiet, Smooth Operation; Locking Support Provides Resistance to Face and Back Body Separation; Oversized Silver-Alloy Contacts for Long Life and Better Heat Dissipation; Side and External Screw-Pressure-Plate Back Wire with #14 - #10 AWG Copper or Copper-Clad Wire; Heavy Duty, Brass Alloy, 1-Piece Contact Arm Virtually Eliminates Contact Bounce; Grounding Terminal is Standard with Screw-Pressure Plate Back Wire; Shallow Design for Easier Installation

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP and 2 HP
Operation Type: 1-Pole
Material: Glass Reinforced Nylon (Back Body), Thermoplastic (Front Body/Toggle)
Color: White
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Industrial, Extra Heavy Duty, Specification Grade
Approval: UL 498, CSA C22.2
