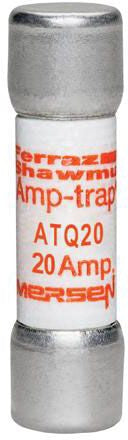

Mersen EP ATQ20 Midget Fuse
Regular price
$10.07
Couldn't load pickup availability
Amp-Trap ATQ midget time-delay fuses are rated a full 500 volts AC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits up to 30A where the available short circuit current does not exceed 10,000A.
Specifications:
Characteristics: 12 Second Time Delay (at 200 Percent Rated Load)
Voltage Rating: 500 Volt AC
Current Rating: 20 Amp
Interrupting Rating: 10 Kiloamp
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-14, CSA C22.2
