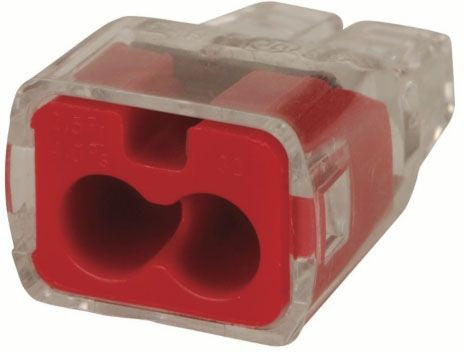

IDEAL Electrical 30-1032J Push-In Wire Connector

In stock - 900 items available
SKU: 257831
Regular price $0.12

If it's IDEAL, it's a quality connector - and the In-Sure Push-In Wire Connector is no exception. Color-coded, the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design of the In-Sure is easier to grip which means more comfortable push-in type connections.


Voltage Rating: 600 Volt
Wire Size: 22 to 12 AWG (Solid), 18 to 12 AWG (Stranded), 14 to 20 AWG (Tin Bonded)
Number of Ports: 2
Material: Nylon/PC (Housing), Copper (Contact), Tin (Plating)
Color: Red
Temperature Rating: 221 Deg F
Standard Package: 5000 Piece Carton
Approval: UL 486C/467, UL 94V-2, CSA C22.2, IEC 998-2-2, CE
