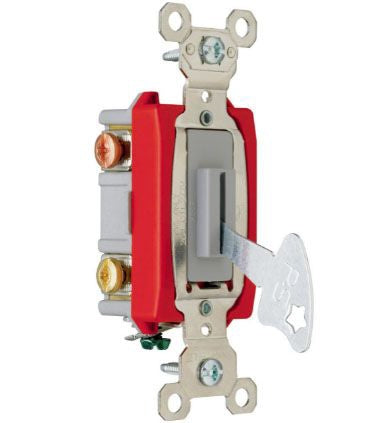

Pass & Seymour PS20AC3L Industrial Locking Toggle Switch

Out of stock
SKU: 25852
Regular price $40.00

External Screw Pressure Plate Back and Side Wired Accepts #14 to #10 AWG Copper or Copper Clad Conductors; Heavy Gauge One Piece Copper Alloy Contact Arm Virtually Eliminates Contact Bounce; Cam Controls Fast Make and Positive Break to Minimize Arcing; Heavy Duty Bumper Pads for Quiet Operation; High Strength Thermoplastic Polycarbonate Toggle; Back Body Made of Glass Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Oversized Silver Alloy Contacts for Long Life and Better Heat Dissipation; Grounding Terminal is Standard; Shallow Design for Ease of Installation; Strap Nickel Plated Steel with Integral Ground; Auto Ground Clip Assures Positive Ground

Specifications:

Type: Lock Key, Extra Heavy Duty
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
Operation Type: 3-Way
Material: Glass Reinforced Nylon (Back Body), Nylon (Front Body), Thermoplastic Polycarbonate (Toggle)
Color: Gray
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Industrial, Specification Grade
Approval: UL, UL 20, CSA C22.2
