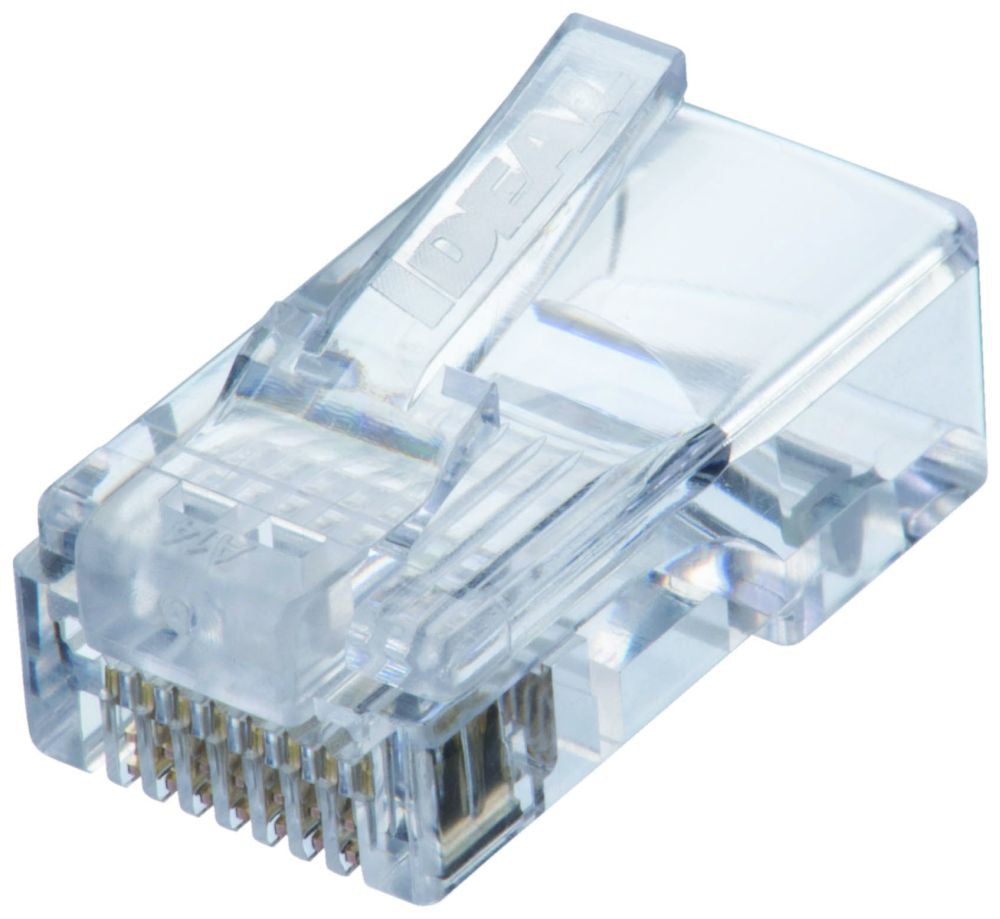

IDEAL Electrical 85-370 Modular Plug

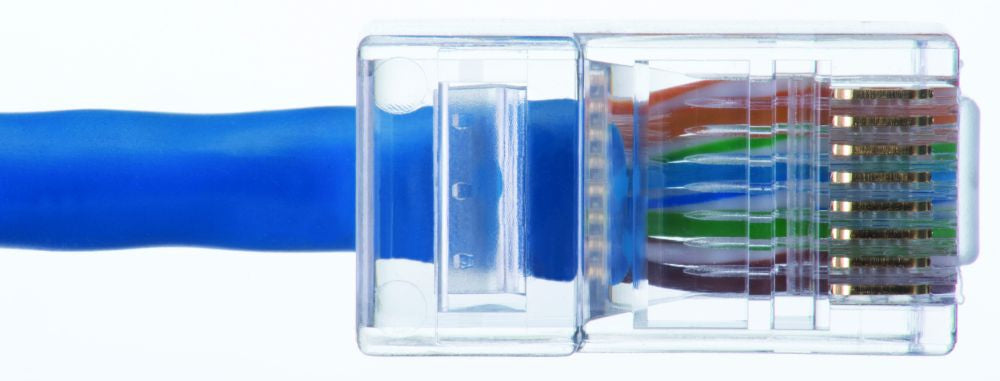

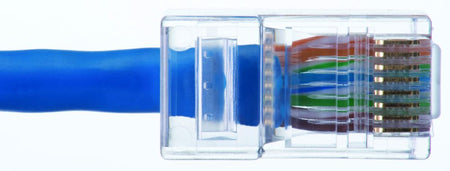

The NEW IDEAL Feed-Thru CAT5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45 tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.Feed-Thru connectors have several additional advantages and improvements to traditional closed end modular plugs in assembly and termination.

Specifications:

Type: RJ45 CAT 5e
Number of Positions: 8
Number of Pins: 8
Cable Type: Twisted Pair
Conductor Size: 24 to 23 AWG Solid/Stranded
Conductor Insulation Outer Diameter: 0.041 Inch
Contact Material: Gold Plated
Standard Package: 25 per Card
