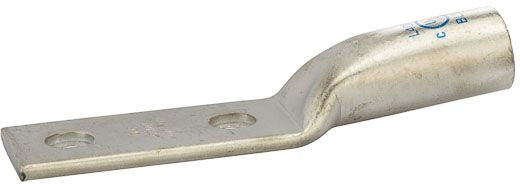

NSi Industries L400N Compression Cable Lug

Out of stock
SKU: 258873
Regular price $0.36
OR

Produced from High Conductivity Tin Plated Copper Tubing; Allows Easy Inspection of the Termination to Assure Complete Cable Insertion; Tin Plated to Provide Corrosion and Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 Kilovolt Maximum when Properly Installed; For Applications Greater than 2000 Volt, Installed to Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Conductor Size: 400 KCMIL
Barrel Type: Long
Barrel Length: 1.97 Inch
Pad Size: 2.99 Inch L x 1.39 Inch W x 0.18 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Blue
Die Index: 14/19/470/76
Material: Tin Plated Copper
Overall Length: 5.47 Inch
Approval: UL 486A/B, 467, UL (Canada and US)
