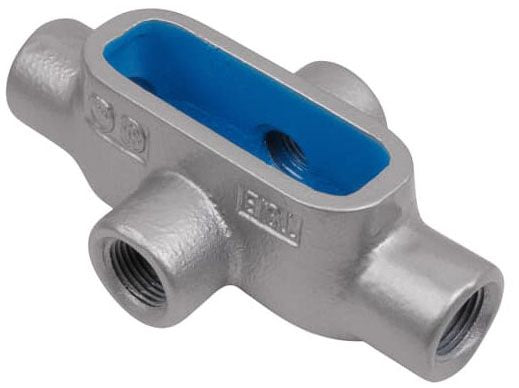

BlueKote Teflon - Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires; Conduit Bodies are Installed in Conduit Systems to Connect Sections, Act as Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices in Branch Conductors

Specifications:

Access Opening: Cross Side
Configuration: X
Cover Type: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
Hub Location: Cross
Number of Hubs: 4
Hub Size: 2 Inch
Size: 9.19 Inch Length x 5.19 Inch Width x 3.13 Inch Height
Installation: Threaded
Material: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
Form Type: Form 7
Approval: UL 514A/B, CSA C22.2, NEC
Used On: IMC/Rigid Conduit
