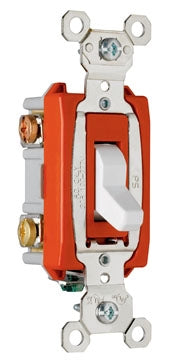

Pass & Seymour PS20AC3W AC Toggle Switch

Out of stock
SKU: 25948
Regular price $4.91
OR

1-Piece Brass Alloy Contact Arm for Reliable Electrical Performance; 1-Piece Steel Strap with Integral Ground is Plated for Corrosion Resistance; High Strength Thermoplastic Polycarbonate Toggle Resists Breaking and Chipping Under Heavy Abuse; Heavy Duty Toggle Bumpers for Smooth and Quiet Operation; Back Body Made of Glass-Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Cam Designed for Fast Make with Positive Break Action to Minimize Arcing and Prolong Switch Life; Oversized Silver Alloy Contact for Longer Dependable Switch Life; Tri-Drive Terminal and Mounting Screws; RoHS Compliant

Specifications:

Type: Toggle, Extra Heavy Duty
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
Operation Type: 3-Way
Material: Glass Reinforced Nylon (Back Body), Nylon (Front Body), Thermoplastic Polycarbonate (Toggle)
Color: White
Wiring: Back, Side

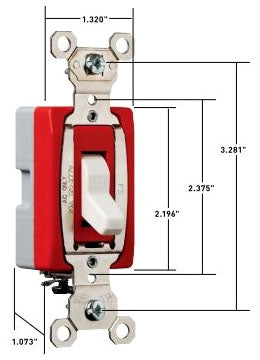

Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Industrial, Specification Grade
Approval: UL, UL 20, CSA C22.2
