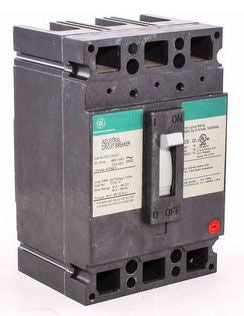

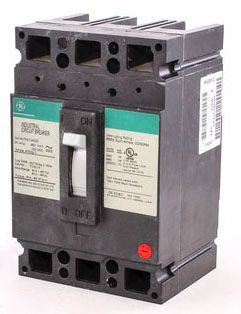

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; All TED Breakers Suitable for Reverse Feed

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TED
Voltage Rating: 480 V
Maximum AC Voltage Rating: 600 V
Maximum DC Voltage Rating: 500 V
Current Rating: 20 Ampere
Number of Poles: 3
Interrupting Rating: 18 Kiloampere at 240/480 VAC, 14 Kiloampere at 600 VAC, 10 Kiloampere at 500 VDC
Terminal Type: Copper/Aluminum Load Lug
Size: 4-1/8 Inch W x 3-3/8 Inch D x 6-5/16 Inch H
Approval: UL, CSA
