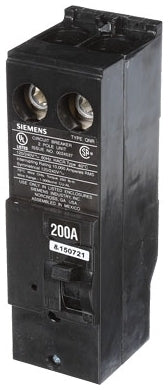

With Reverse Handle; Required for Horizontal or Vertical Applications Where the Lugs are Facing Up; Requires 4 Panel Spaces, 2 Adjacent and 2 Opposite

Specifications:

Type: Main/Branch, Common Trip
Number of Poles: 2
Voltage Rating: 120/240 VAC (UL)
Current Rating: 200 Ampere
Interrupting Rating: 10 Kiloamp (UL)
Terminal Type: Load Lug
Wire Size: 1 AWG to 300 KCMIL (Copper/Aluminum)
Mounting: Plug-In
Used On: Loadcenter
Size: 2.6 Inch W x 3.08 Inch D x 6.45 Inch H
Approval: UL 489
