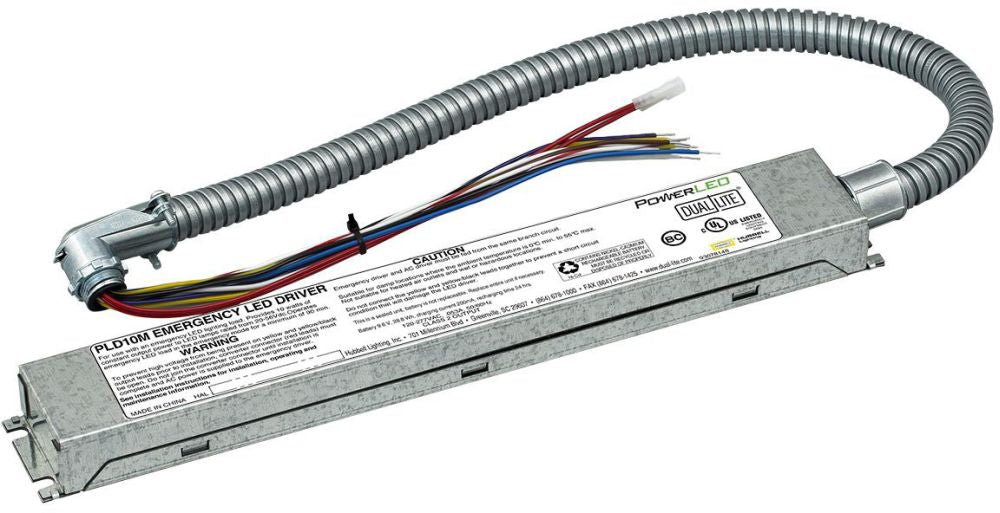

The Dual-Lite PLD10, PLD9 and PLD7 family of universal input (120-277V) emergency LED battery packs work with an AC LED driver to allow an LED lighting load to be used in both normal and emergency operation. When normal AC power is lost, the PLD10/PLD10M and PLD9-2H/PLD9M-2H provide 10 watts and 9 watts respectively of constant emergency power at a rated output voltage of 20-56Vdc, and the PLD7 / PLD7M / PLD7M2 provide 7 watts of constant emergency power at a rated output voltage of 15 - 56Vdc. The constant power design provides backup for a minimum of 90 minutes (or 120 minutes for the PLD9-2H and PLD9M-2H) with no loss of emergency lumen output. When used with emergency-only LED fixtures, no AC driver is needed. The UL924 Listing allows for both field and factory installations of suitable LED loads including LED luminaries, DC voltage driven LED replacements for fluorescent lamps and others.

Specifications:

Type: LED Battery Pack
Used On: Emergency Light Fixture
