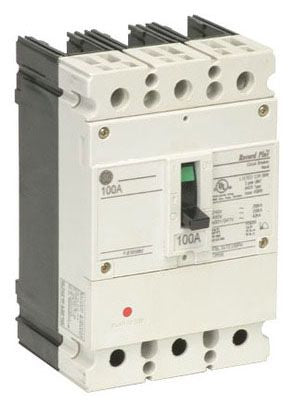

Record Plus Represents the Very Latest in Molded Case Circuit Breaker Design; Utilizing Design Features Such as Double-Break Rotary Contact Structures and Advanced Ablative Materials to Enhance Interruption, Record Plus is Capable of Interrupting Ratings up to 200 Kiloamp; High KAIC Ratings, Selective Coordination, Reduced Arc Flash Energy and Current Limitation Embody the Core Design Principles of Record Plus; FB 100 Circuit Breakers are Supplied with Factory Installed Non-User Interchangeable Thermal-Magnetic Trip Units and can be Supplied with or without Lugs

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Current Limiting
Frame Type: FB
Voltage Rating: 600 Star/347 VAC
Maximum AC Voltage Rating: 600 Star/347 V
Current Rating: 40 Ampere
Number of Poles: 3
Interrupting Rating: 150 Kiloampere at 240 VAC, 65 Kiloampere at 480 VAC, 25 Kiloampere at 600 Star/347 VAC
Terminal Type: Load Lug, Line Connector
Size: 4.11 Inch W x 3.28 Inch D x 6.45 Inch H
Approval: UL (Canada and US)
