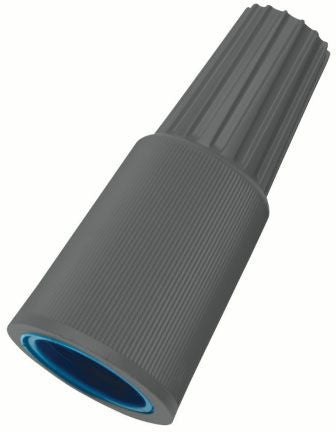

IDEAL Electrical 30-1264 Wire Connector

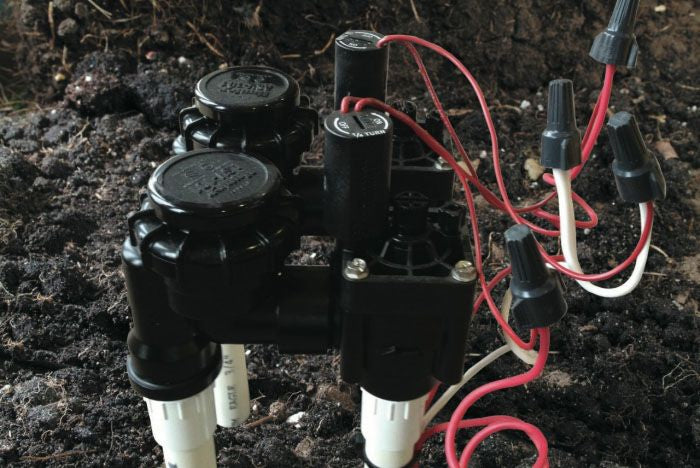

UnderGround Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits. With an expanding, live-action spring and pre-filled with a silicone-based sealant, UnderGround Wire Connectors make fast, secure, and long lasting connections. The tough, thermoplastic shell provides extra protection against accidental impacts and the deep skirt provides superior moisture resistance, making these connectors UL Listed to 486G for use in damp, wet or direct burial, below-grade applications.Yellow MudBug Utility Wire Connectors off the same moisture and corrosion resistant properties as the UnderGround connectors but are designed for utility tracer line applications.Due to the pre-filled silicone sealant, UnderGround and MudBug Utility Wire Connectors are designed as a one-use only connection.

Specifications:

Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 18 to 8 AWG
Minimum Wire Combination Size: (2) #18
Maximum Wire Combination Size: (3) #10
Spring Type: Square Wire, Expanding, Live Action
Color: Gray/Dark Blue
Temperature Rating: 105 Deg C
Standard Package: 50 per Box
Approval: UL 468D, CSA
