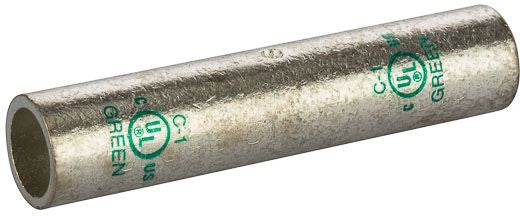

Produced from High Conductivity Copper Tubing; Serrations Indicate Proper Crimp Location; Tin Plated to Provide Corrosion Resistance; Marked with Die Index and Color Coded; Suitable for Use at Voltages up to 35 Kilovolt Provided Connector is Properly Installed to Cable Manufacturer Voltage Stress Relief Instructions; 5 Kilovolt is the Maximum Voltage in All Bare Splices

Specifications:

Type: Butt
Voltage Rating: 600 Volt
Conductor Size: 1 AWG Stranded
Color Code: Green
Barrel Type: Long
Length: 2.2 Inch
Inner Diameter: 0.359 Inch
Outer Diameter: 0.469 Inch
Body Material: Tin Plated Copper
Approval: UL (Canada and US), UL 486A/B
