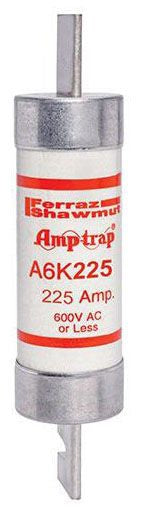

Current-limiting A6K fuses provide excellent protection where high available short circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Specifications:

Type: Class RK1
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 225 Amp
Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
Terminal Type: Blade
Diameter: 2-9/16 Inch
Length: 11-5/8 Inch
Approval: UL 248/248-12, CSA C22.2
