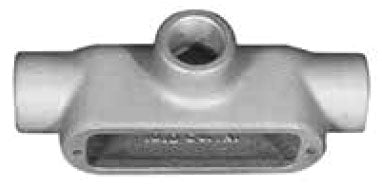

Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation; Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity; Form 35 Malleable Iron Unilets High Tensile Strength and Ductility; High Corrosion Resistance; High Impact and Shock Resistance; Exclusive Built in Easy Pulling Rollers in Type C and Type LB Eliminate Damage When Cable is Pulled Through Hubs; Sizes with Flat Back Design Ideal Where Fitting is Mounted Flat Against Surface; Serve as Pulling Fitting, Make Bend in Conduit System, Provide Opening for Splicing, Connect and Change Direction of Conduit Run, Allow Connection for Branch Run, Permit Access to Conductor for Maintenance; Hazardous Location

Specifications:

Constructional Feature: Explosionproof
Configuration: T
Hub Size: 1/2 Inch
Number of Hubs: 3
Hub Location: Tee
Access Opening: Side
Capacity: 6 Cubic Inch
Enclosure: Class I Div 2
Material: Malleable Iron
Finish: Zinc Electroplated Chromate Epoxy Powder Coated
Size: 1.75 Inch Width
Approval: UL, CSA
