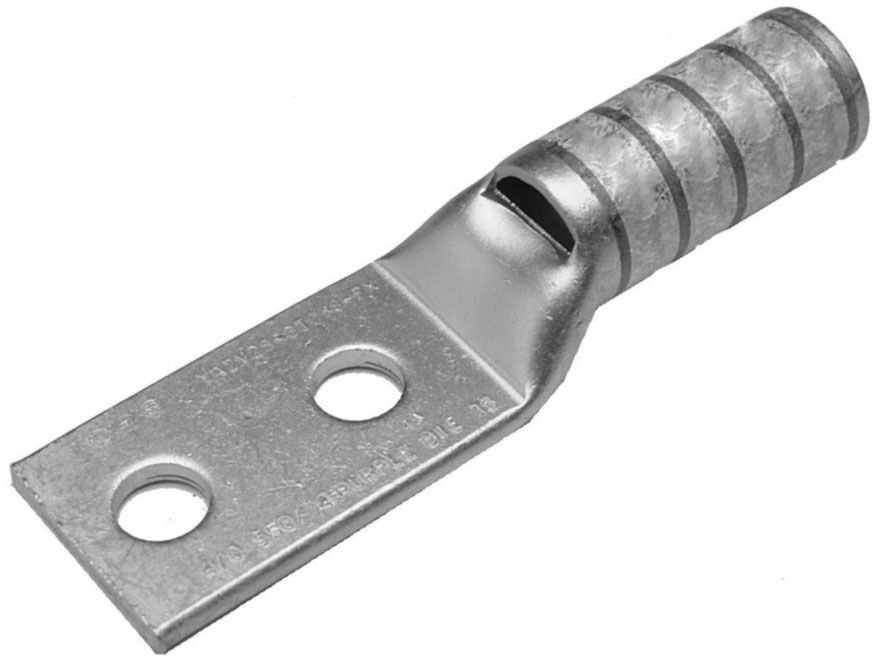

Burndy YAZV4C2TC14FX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 91/24 to 105/24 DLO, 4 AWG (Weld Flex), 4 AWG Stranded
Barrel Type: Long, Skived, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.55 Inch W x 0.09 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 5/8 Inch
Stud Size: 1/4 Inch
Color: Gray
Die Index: 8/346
Material: Electro-Tin Plated Copper
Overall Length: 2.82 Inch
Approval: UL, CSA
