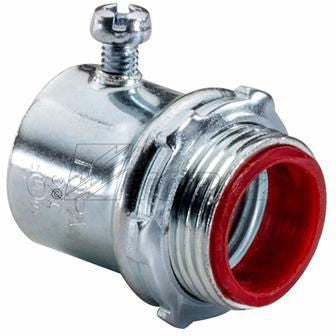

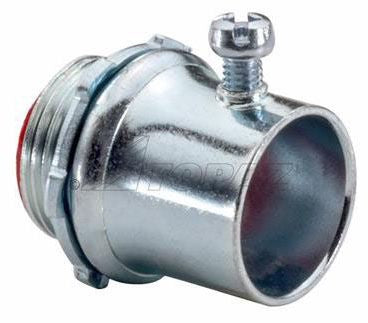

Topaz EMT connectors with set screw type assembly provide secure concrete tight protection when taped. Insulated throat models offer superior protection against abrasion. Applications include use in dry locations to bond EMT thin wall conduit to electrical boxes or enclosures. Model all sizes are suitable for both EMT and rigid conduit. Assemblies include steel locknut; constructed of strong and long lasting steel with zinc plated finish; UL listed. NEMA/ANSI FB-1 compliant.

Specifications:

Type: Set Screw
Throat Type: Insulated
Trade Size: 1-1/2 Inch
Diameter: 2.25 Inch
Length: 2.5 Inch
Thread Length: 0.563 Inch
Material: Zinc Plated Steel
Constructional Feature: Concrete-Tight
Standard Package: 25 per Case
Approval: UL 514B, CSA
Used On: EMT Conduit
