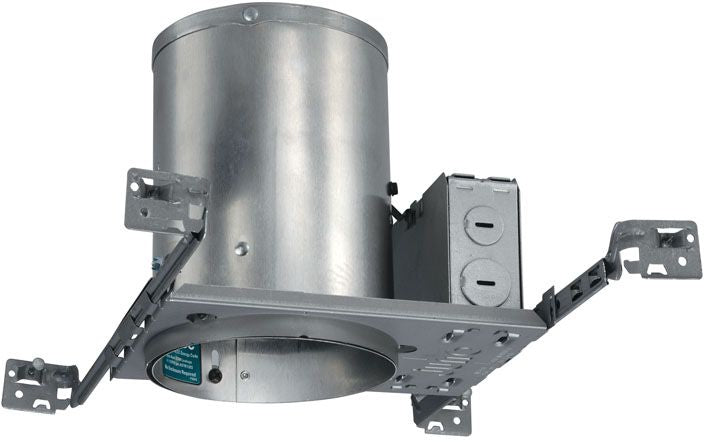

The energy-efficient housing is Air-Loc sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs. It is also IC-rated to be completely covered with insulation.

Specifications:

Type: Universal Housing
Lamp Type: A19/BR30/PAR20/PAR30/PAR30L/R20/R30
Lamp Mounting Position: Vertical
Nominal Aperture Size: 5 Inch
Aperture Shape: Round
Ceiling Type: Insulated
Ceiling Opening Size: 5-5/8 Inch
Installation: New Construction

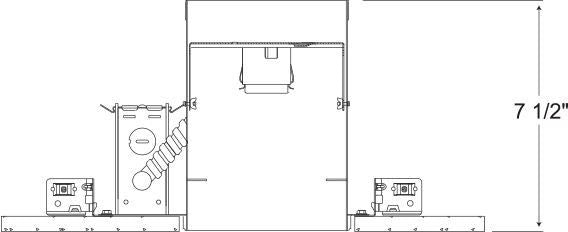

Height: 7-1/2 Inch
Housing Material: 0.032 Inch Thk Aluminum Housing, 22 Gauge Die-Formed Galvanized Steel Frame
Junction Box Type: Pre Wired with (5) 1/2 Inch, (1) 3/4 Inch Knockout, (8) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector
Application: Damp Location
Approval: UL, CSA
