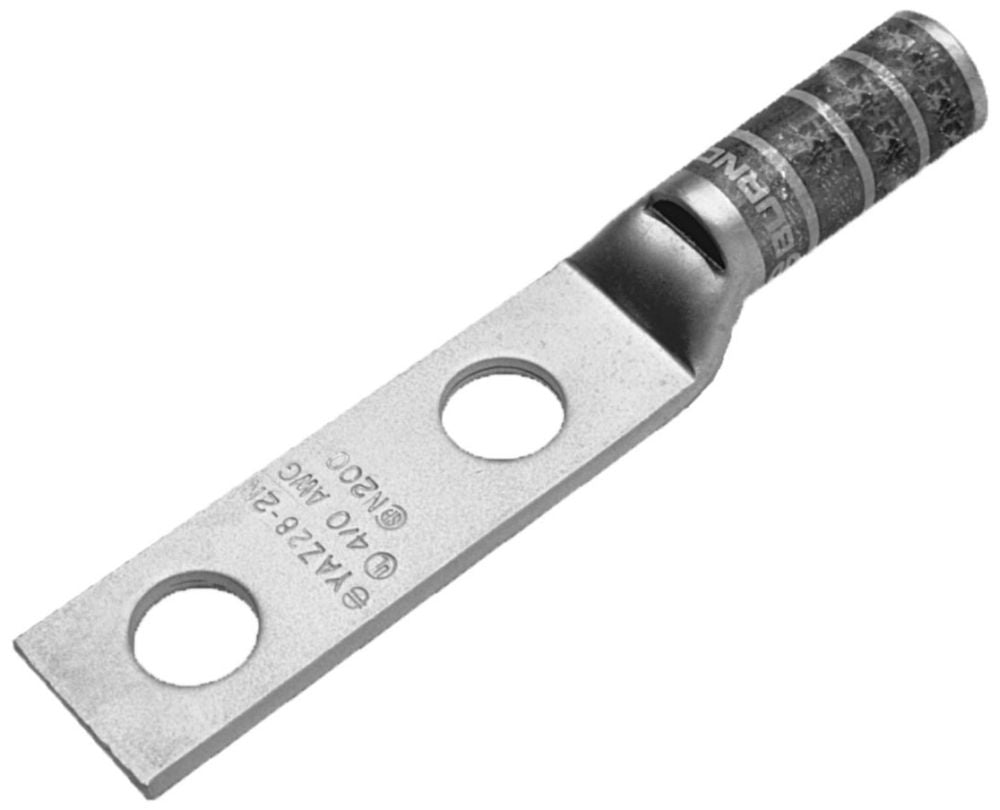

Burndy YAZ382NT38FX Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1325/24, 535.3 KCMIL, 500 KCMIL Stranded (Flex)
Barrel Type: Long, Skived, Straight

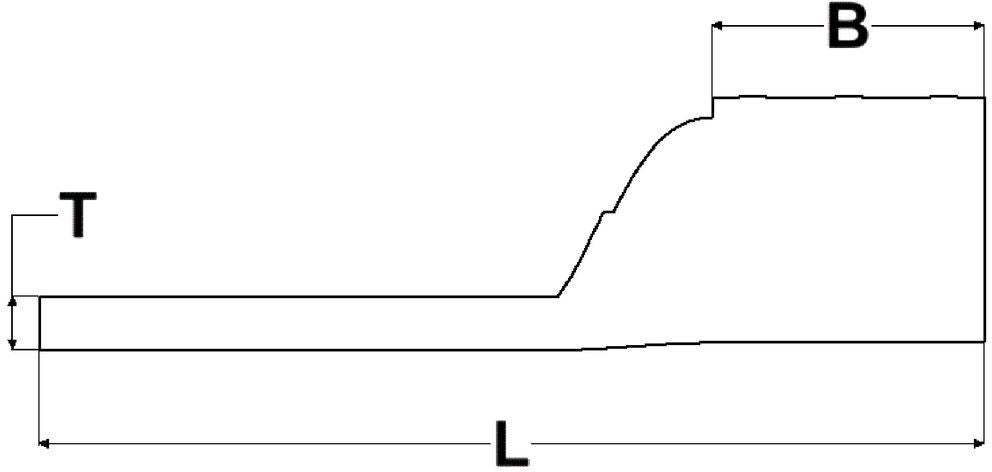

Barrel Length: 2.81 Inch
Pad Size: 1.62 Inch W x 0.27 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Pink
Die Index: L99
Material: Electro-Tin Plated Copper
Overall Length: 5.72 Inch
Approval: UL, CSA
