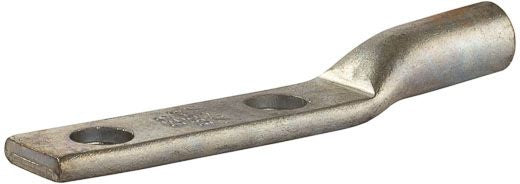

Produced from High Conductivity Aluminum Tubing; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum when Properly Installed to Cable Manufactures Specifications

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 1/0 AWG
Barrel Type: Standard
Barrel Length: 1.2 Inch
Pad Size: 3.12 Inch L x 0.85 Inch W x 0.24 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Tan
Die Index: 8/296/50
Material: Electro Tin Plated Aluminum
Overall Length: 4.74 Inch
Approval: UL 486A/B, UL (Canada and US)
