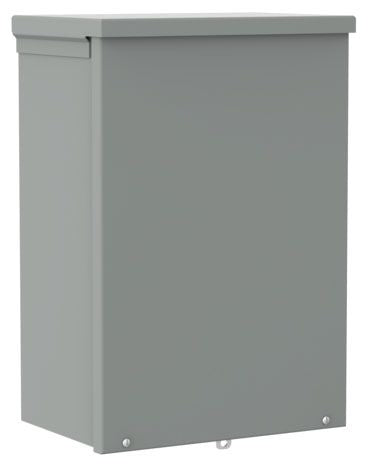

Hoffman Enclosures A10R106 Screw Cover Enclosure
Regular price
$56.46
Couldn't load pickup availability
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.
Specifications:
Type: Unflanged
Height: 10 Inch
Width: 10 Inch
Depth: 6 Inch
Material: Steel
Material Specification: 16 Gauge
Finish: Galvanized, Polyester Powder Painted
Color: ANSI 61 Gray
Enclosure: NEMA 3R, IP32
Cover Type: Screw, Padlockable, Slip-On
Knockout Location: (5) Bottom
Number of Knockouts: 5
Knockout Size: (2) (1/2 to 3/4 Inch), (2) (3/4 to 1 Inch), (1) (1 to 1-1/4 Inch) Concentric Knockout Bottom
Service Type: Outdoor
Approval: UL 50/50E, CUL, CSA C22.2
