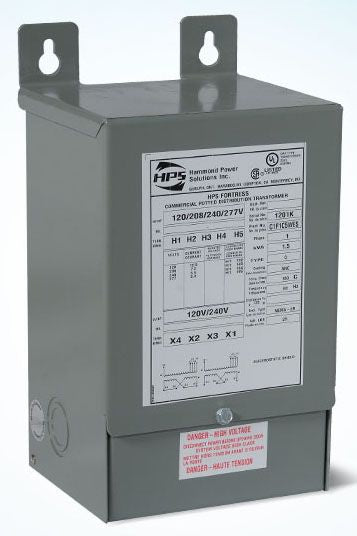

Hammond Power Solutions C1FC50WE Encapsulated Distribution Transformer
Regular price
$145.49
Couldn't load pickup availability
HPS Fortress is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation, and low cost are key. All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.
Specifications:
Primary Voltage: 120/208/240/277 V
Secondary Voltage: 120/240 V
Frequency Rating: 60 Hz
Power Rating: 0.5 KVA
Insulation Class: 130
Terminal Type: Lead Wire
Mounting: Wall
Size: 5 Inch W x 4.75 Inch D x 9.25 Inch H
Applicable Standard: ANSI 61, NEMA ST-20
Approval: UL 50, CSA
