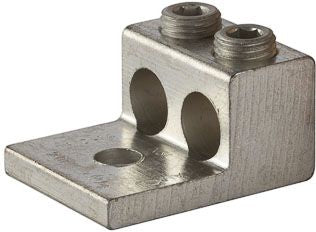

Versatile and Reusable Set-Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Set Screw
Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 5/16 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 0.85 Inch Length x 0.63 Inch Width x 0.19 Inch Thickness
Stud Size: 0.406 Inch
Overall Length: 2.88 Inch
Approval: UL (Canada and US), UL 486A/B
